Tower Engineering Services

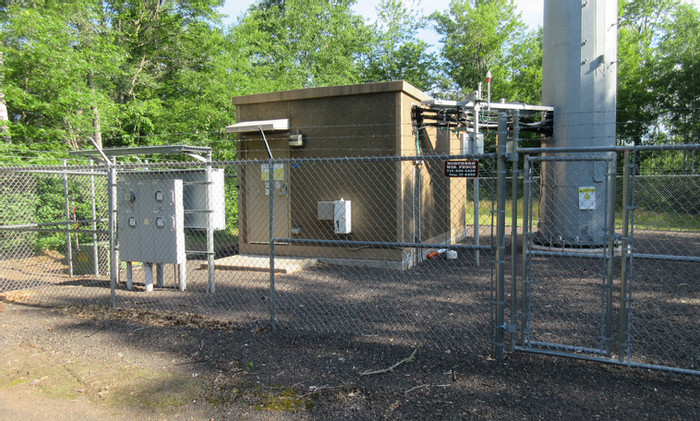

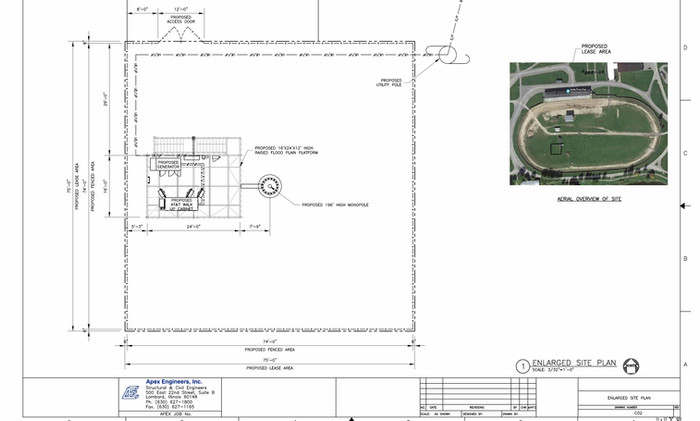

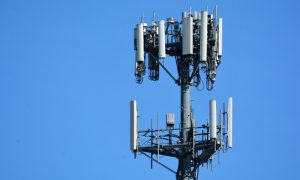

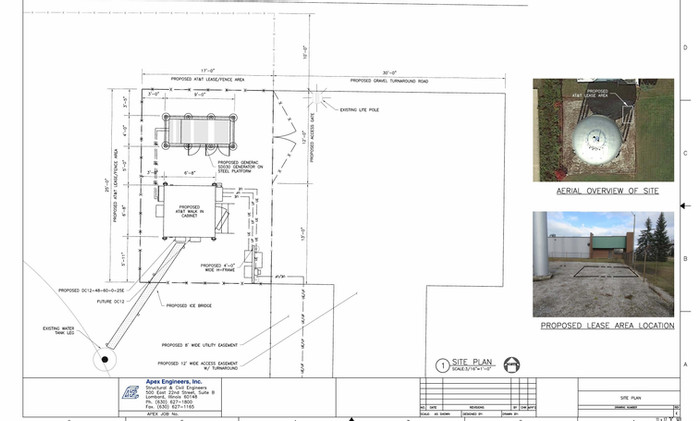

Rawland Construction Drawings
- performing Site Survey and 1A Certification,
- preparing Lease Exhibit,
- preparing Zoning Drawings,
- preparing Photo Simulations,
- performing Geotechnical Investigation

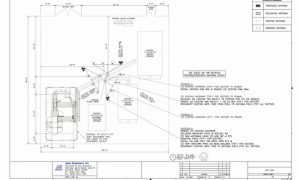

- developing Construction Drawings.

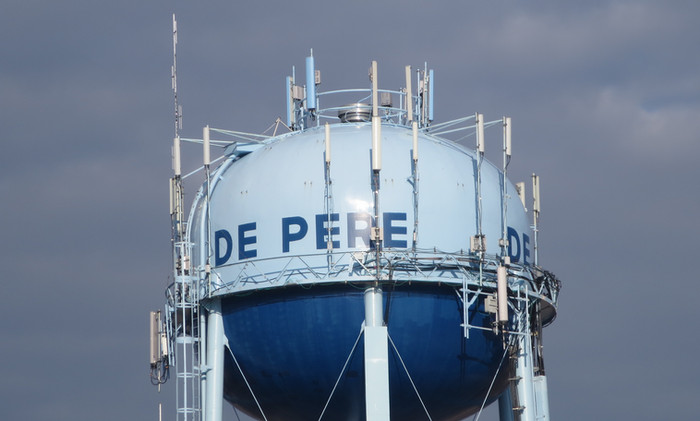

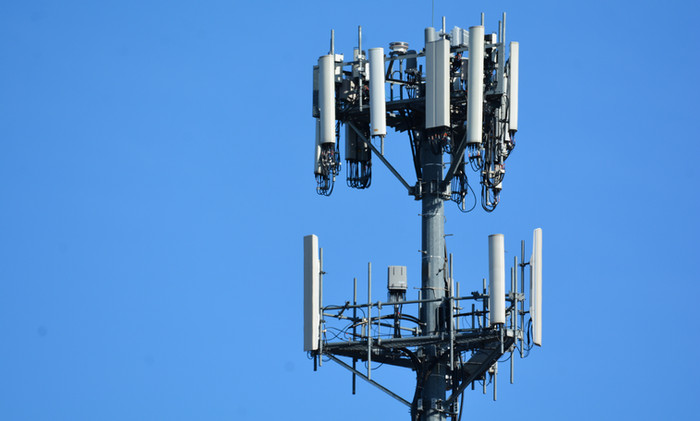

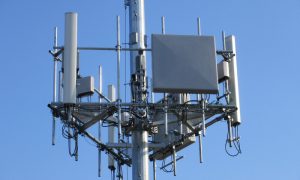

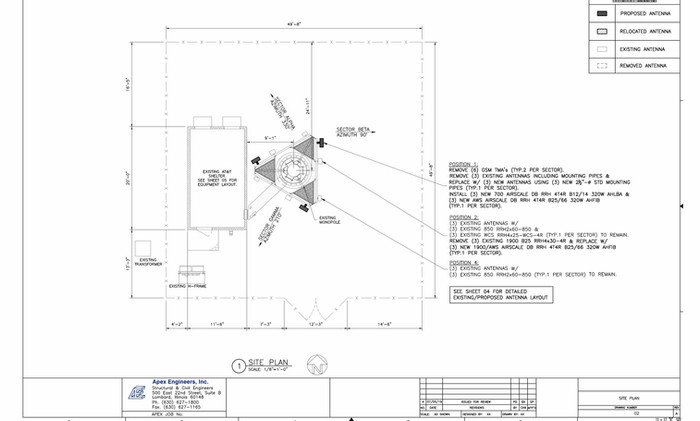

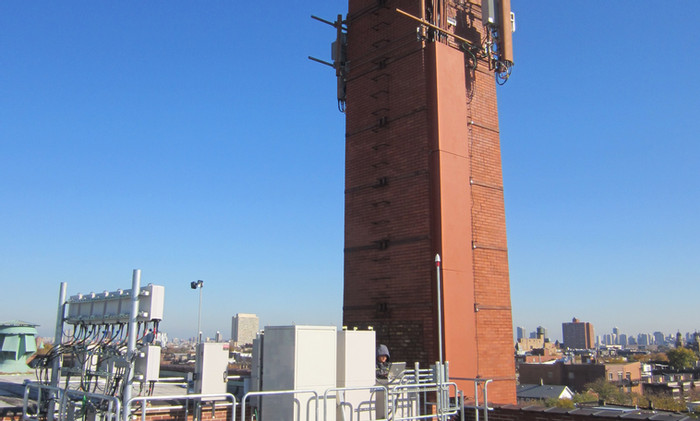

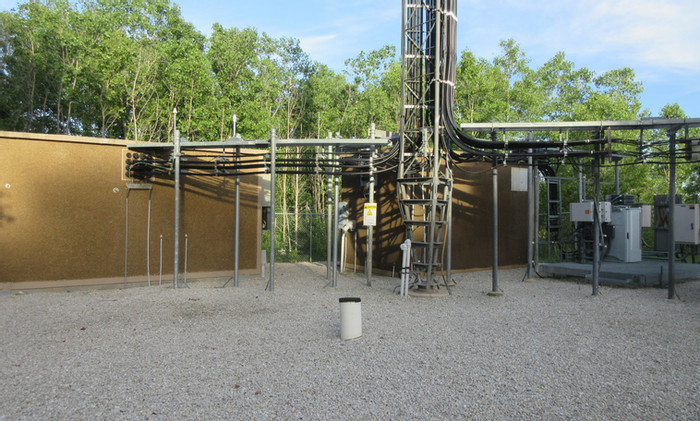

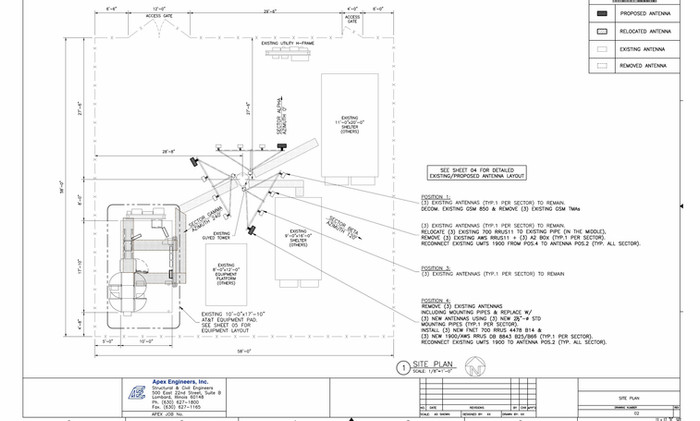

Colocation Tower Construction Drawings
- performing Site Survey and 1A Certification,
- preparing Lease Exhibit,
- preparing Zoning Drawings,
- preparing Photo Simulations,
- performing Geotechnical Investigation
- developing Construction Drawings.

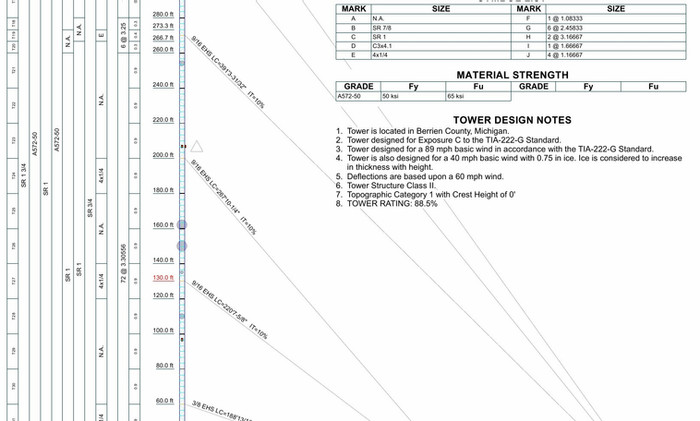

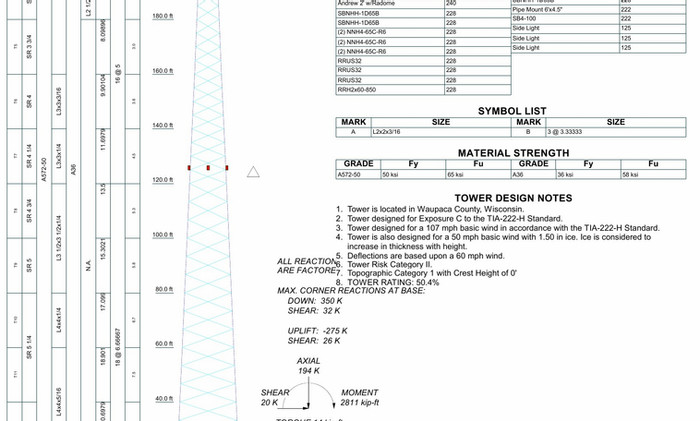

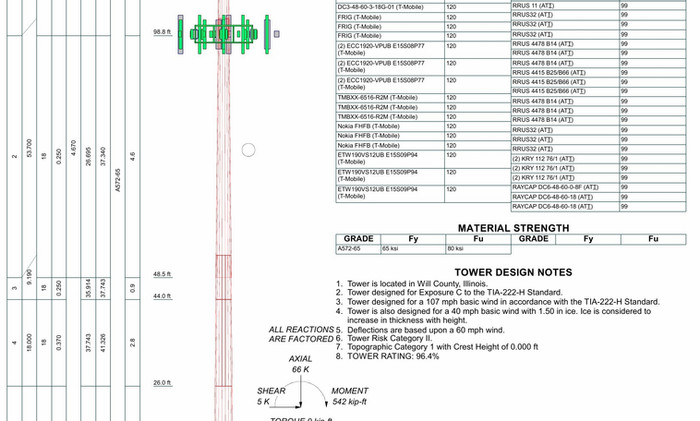

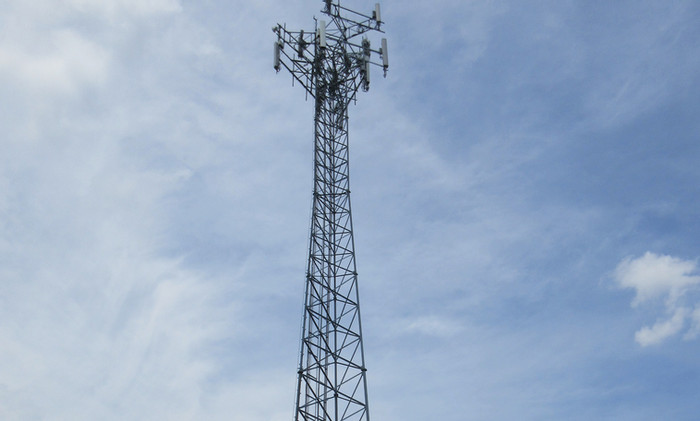

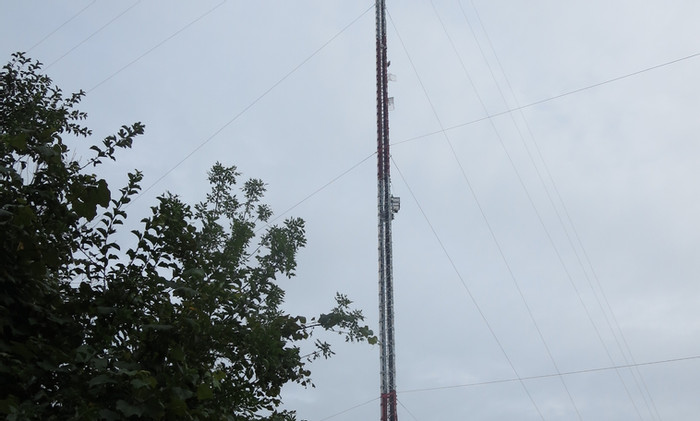

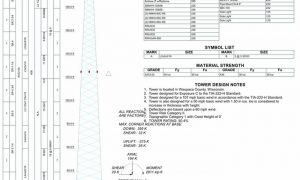

Tower Structural Analysis
- Providing detailed reports
- Verifying that towers meet the ANSI/TIA-222 Standard
- Verifying that towers meet the Model Building Codes

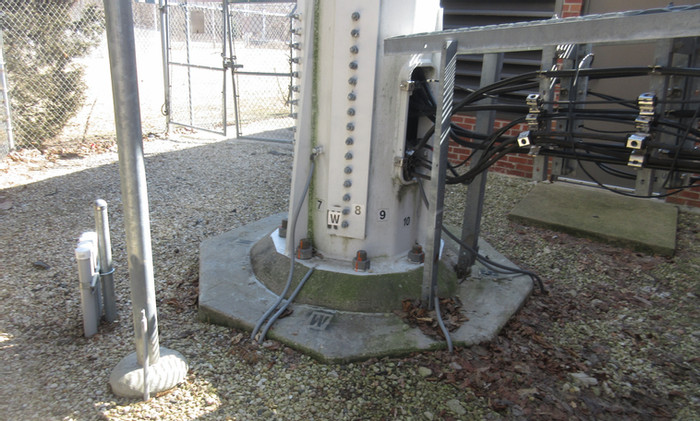

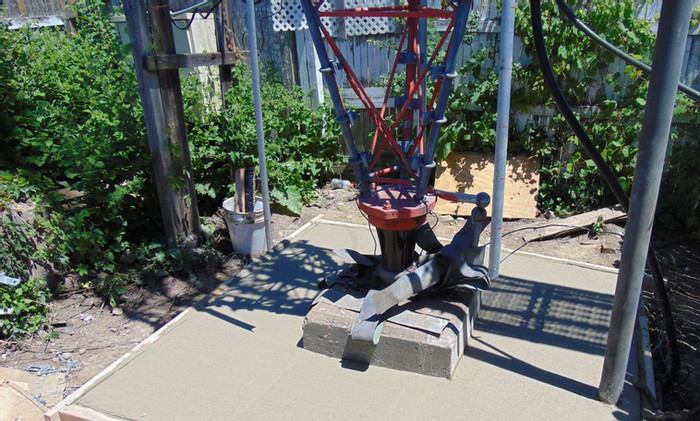

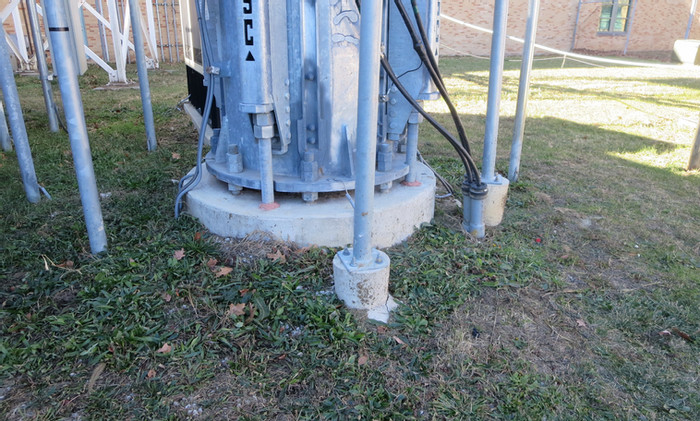

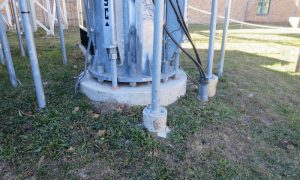

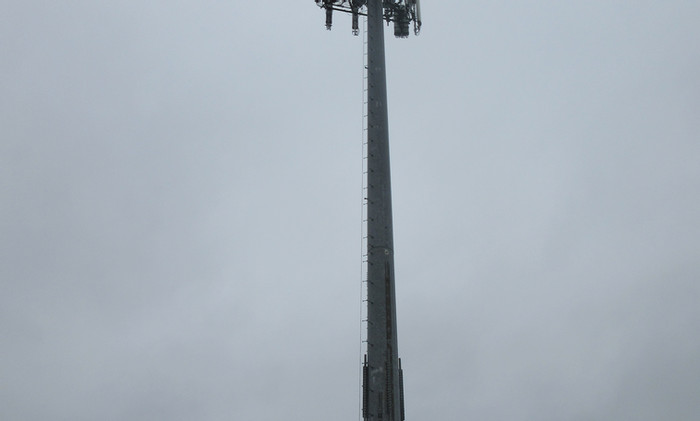

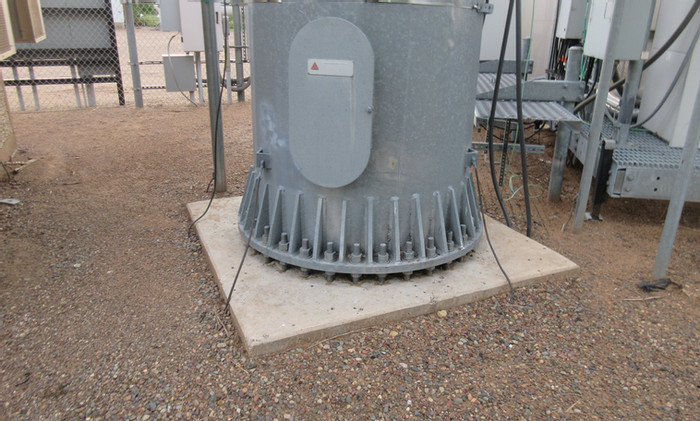

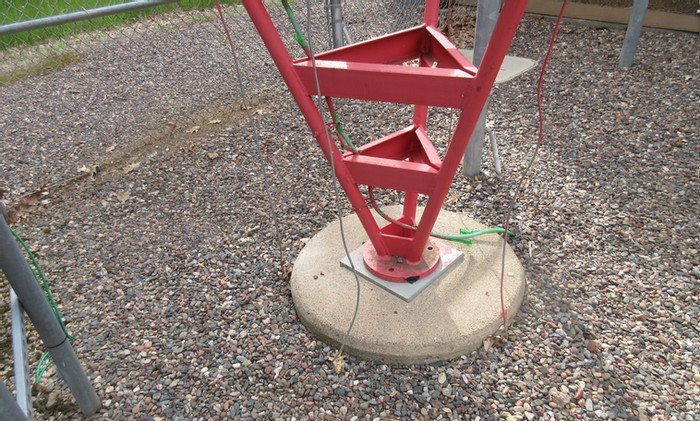

Foundation Analysis
- Verifying that towers meet the ANSI/TIA-222 Standard
- Verifying that towers meet the Model Building Codes

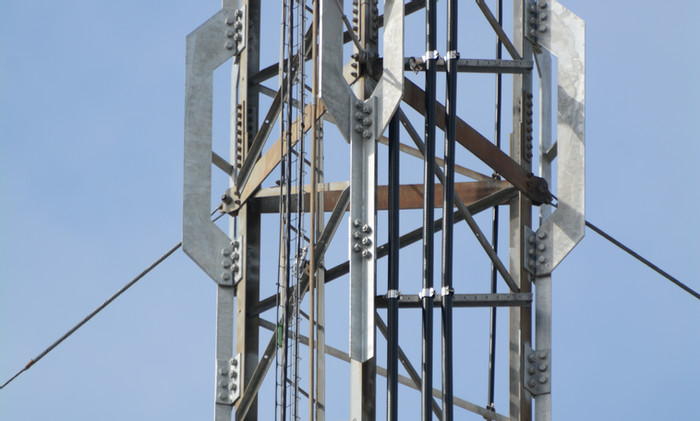

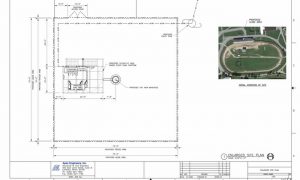

Tower/Foundation Modifications Drawings
- Providing clients solutions to proceed with equipment upgrades when the structures are already stressed to the limit.

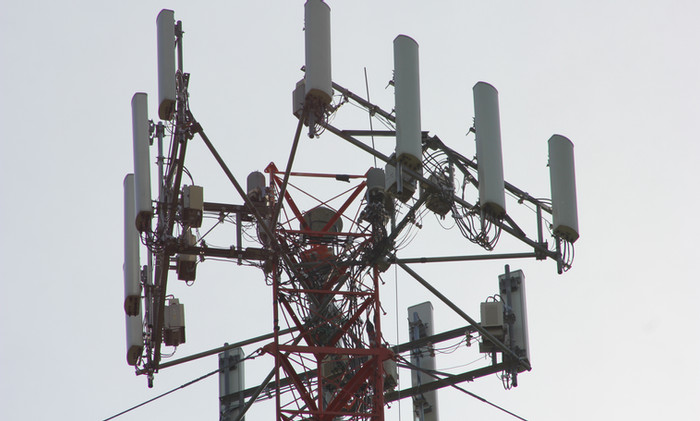

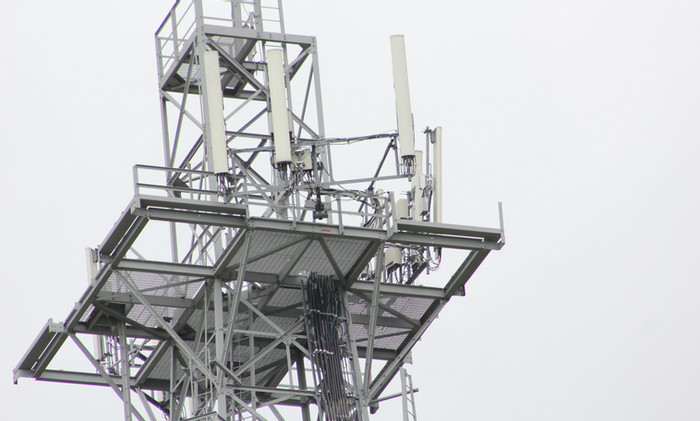

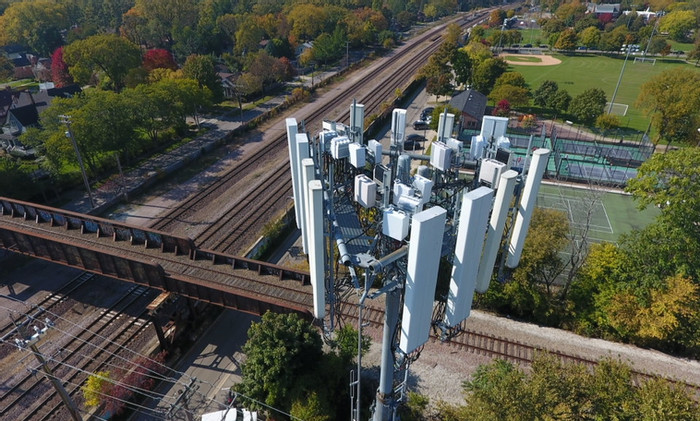

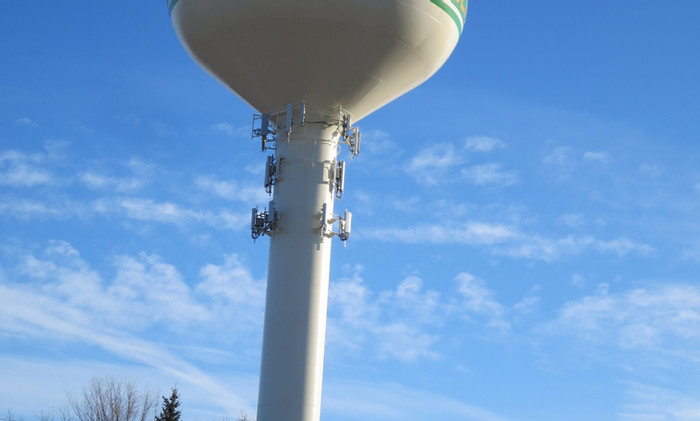

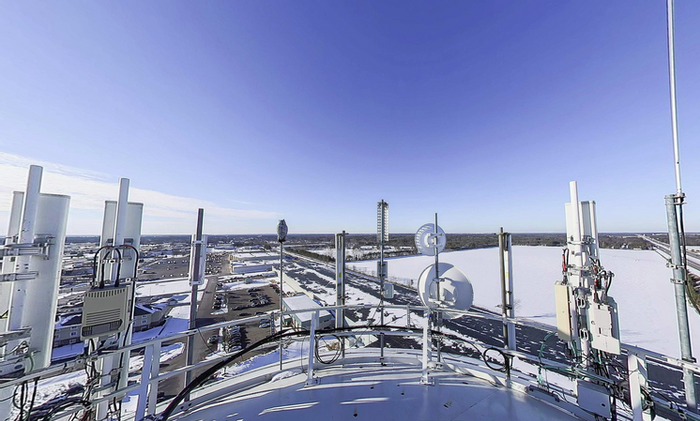

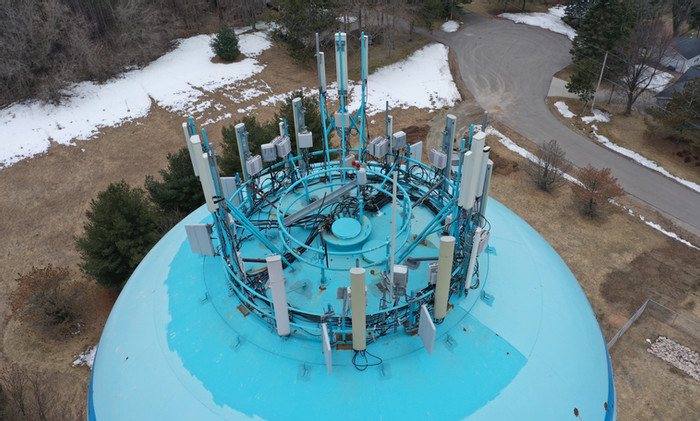

Complete Tower Mapping
- Providing antenna inventory, coax inventory, tower height, tower members inventory, and overall tower condition.

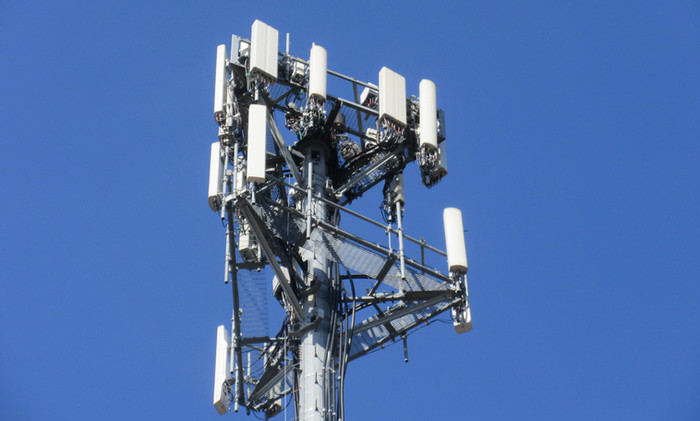

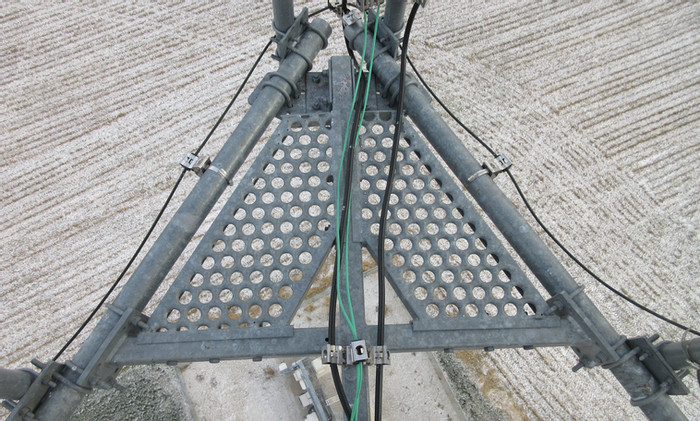

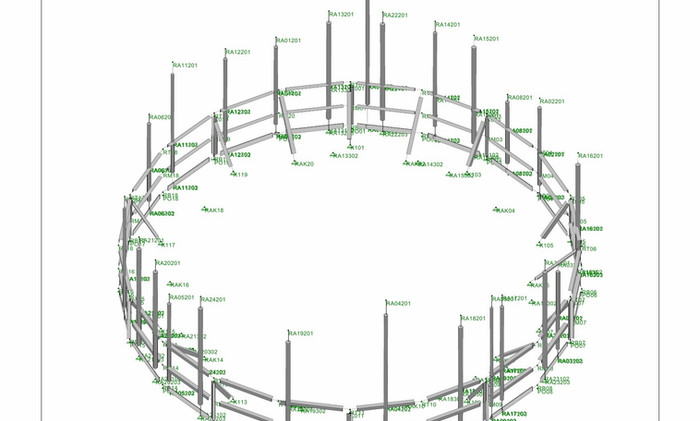

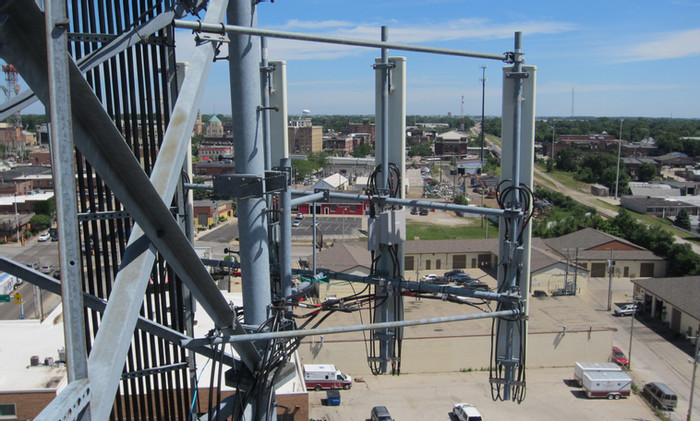

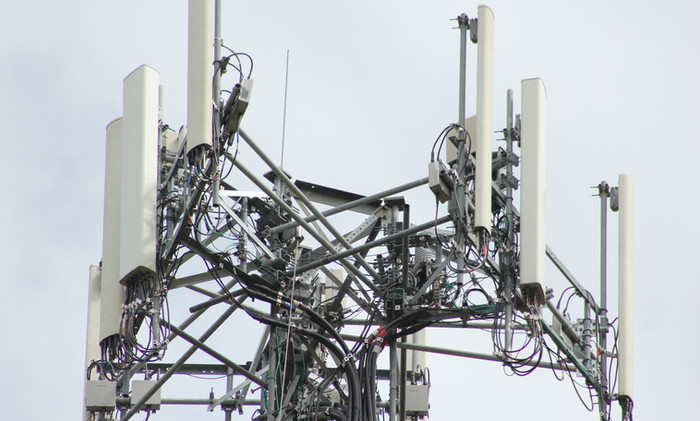

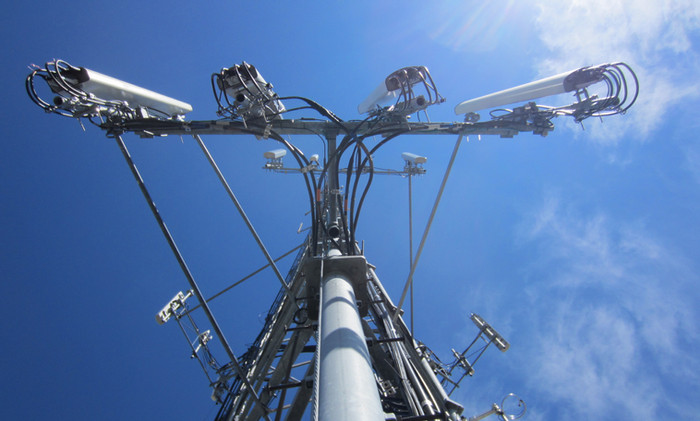

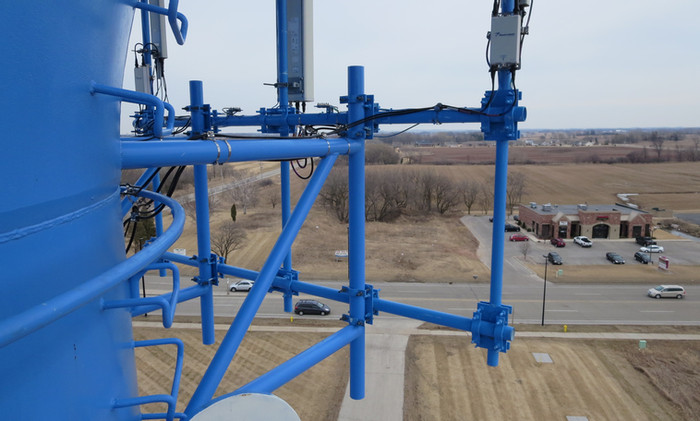

Tower Mount Mapping
- Map existing antenna mounting frame and existing antenna configuration.

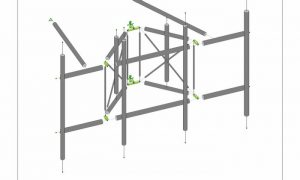

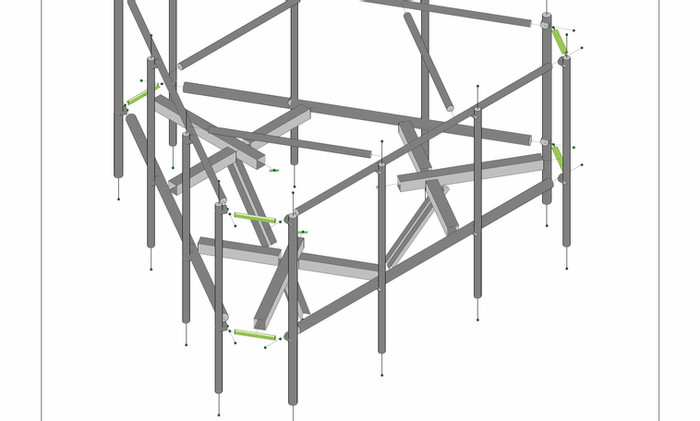

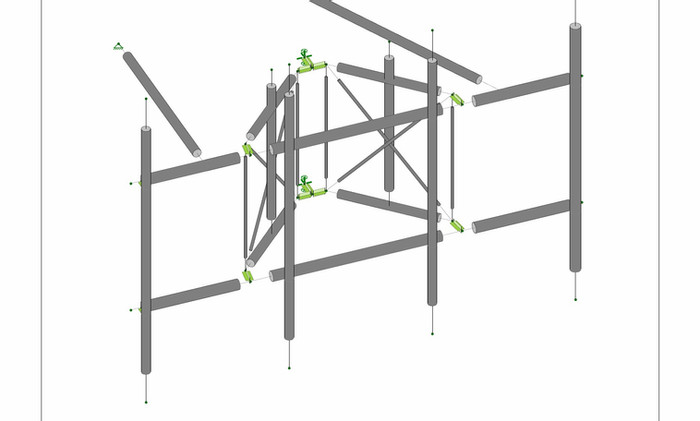

Tower Mount Analysis
- Check existing antenna mount per latest antenna configuration. Provide mount analysis report or mount evaluation letter
Tower Mount Modifications Report/Drawings
- Provide modification design including pre-mod inspection, mount analysis, mount modification drawings, and post-mod inspection
